Five steps to correctly install the bearing

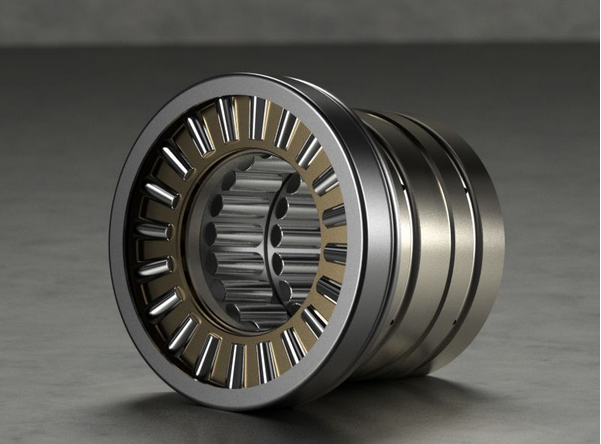

Five steps to correctly install the  NSK bearing

1--Use special tools for bearing installation and disassembly

Advanced installation tools can avoid bearing damage caused by improper tools and operations during installation. For example, when installing the bearing, the staff used the copper rod knock-in method, which is easy to cause uneven axial force of the bearing, causing deformation of the cage, damage to the rolling elements, and larger clearance, and the copper rod is in the process of knocking. The copper powder flies into the bearing cage, which is easy to cause bearing failure.

2--Check the bearings before installation

For old bearings, check whether there are burrs, scratches, or cracks on the surface of the ball (column). Whether the radial clearance and axial clearance of the old bearing are qualified, generally only the radial clearance is measured. For new bearings, first check whether the bearing model is correct. Refer to Table 1 for the radial clearance standards of rolling bearings. For example: Model 6318 deep groove ball bearing, bearing inner diameter 90mm, its radial clearance range is 0.016~0.046mm, the maximum wear of the bearing can also be found to be 0.25mm.

3--Check the matching size of the bearing and the rotor shaft

When assembling the motor, it is necessary to carefully check the matching dimensions of the bearing and the rotor shaft when the bearing is installed (Table 2), and the matching dimensions of the bearing outer ring and the end cover hole.

4--Control the amount of oil in the bearing and the bearing chamber

Excessive oil in the bearing and the box will cause the rolling elements of the bearing to slip, causing the rolling friction to change from rolling friction to sliding friction, which will damage the rolling elements of the bearing. Due to the excessive amount of oil in the bearing, the free space in the bearing box is small, and the operating temperature of the bearing will be reduced. Rising, the lubricating grease density decreases, the rolling element lubricating oil film becomes thin, the lubrication condition is poor, it is easy to cause abnormal bearing noise, surface slippage, and shorten the bearing life. Generally, there is a bearing oil chamber on the side of the motor end cover (except for the motor designed as a double-sealed bearing). According to the motor speed, the oil filling amount of the bearing chamber can be implemented according to the following standards: when the motor speed is less than 1500r/min, the oil filling amount is the bearing chamber 2/3 of the volume. When the speed is between 1500 and 3000r/min, it is 1/2 of the volume of the bearing chamber. When the speed is greater than 3000r/min, it should be less than or equal to 1/3 of the bearing volume. In the actual work process, for bearings that run at high temperatures and high speeds, bearings with sealing surfaces should be used as little as possible, increase the amount of oil in the motor oil cover, and install a refueling nozzle to increase the operating life of the motor bearing.

5--Pay attention to ensure the insulation is intact

For bearings with an insulation design on the outer ring, care must be taken to ensure that the insulation is intact. If the bearing insulation is damaged during installation, the thin oil film of the bearing will be broken down by the shaft voltage. After the oil film breaks down, not only will the lubrication conditions of the rolling elements be poor, but also the electric sparks generated will form electrical corrosion on the rolling elements of the bearing and cause the rolling elements. The surface is not polished, which accelerates the wear of the bearing.
